Initial Architectural Layers

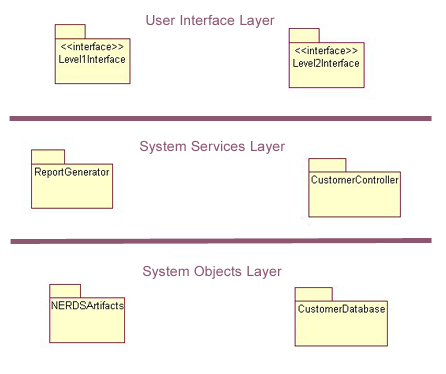

The following is a diagram of the initial packages and architectural layers for the NERDS software application with divisions added to indicated their initial architectural layers. A "layered" organization has been chosen to be used.
