Use-Case Design - Sequence Diagrams
 |
 |
During use-case analysis we selected three out of our nine use-cases to be represented in our collaboration diagrams. The collaboration diagrams were updated with design classes and subsystems from the architectual design phase. These interaction diagrams were then converted into the sequence diagrams shown below.
|
 |
 |

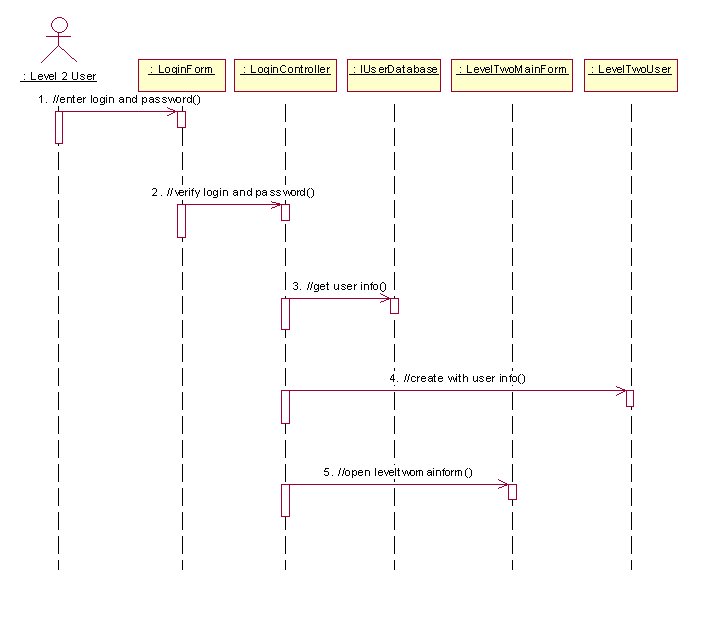

Login (Pass)

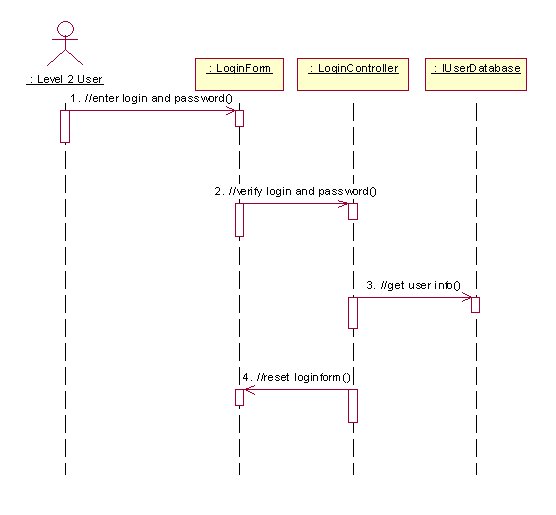

Login (Fail)

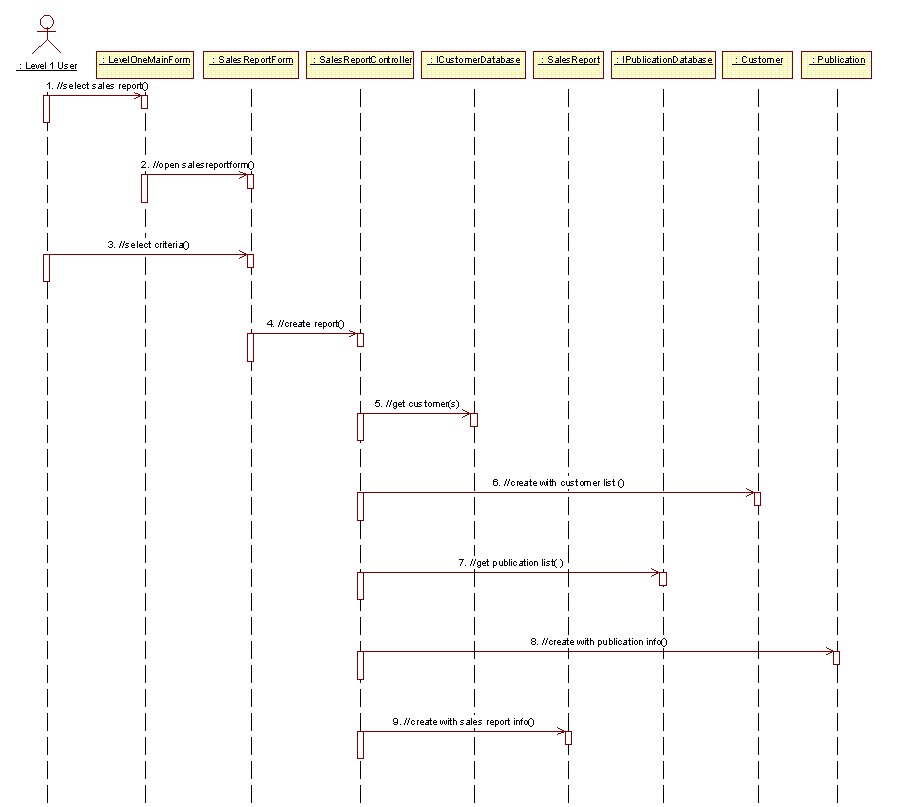

Sales Report (Pass)

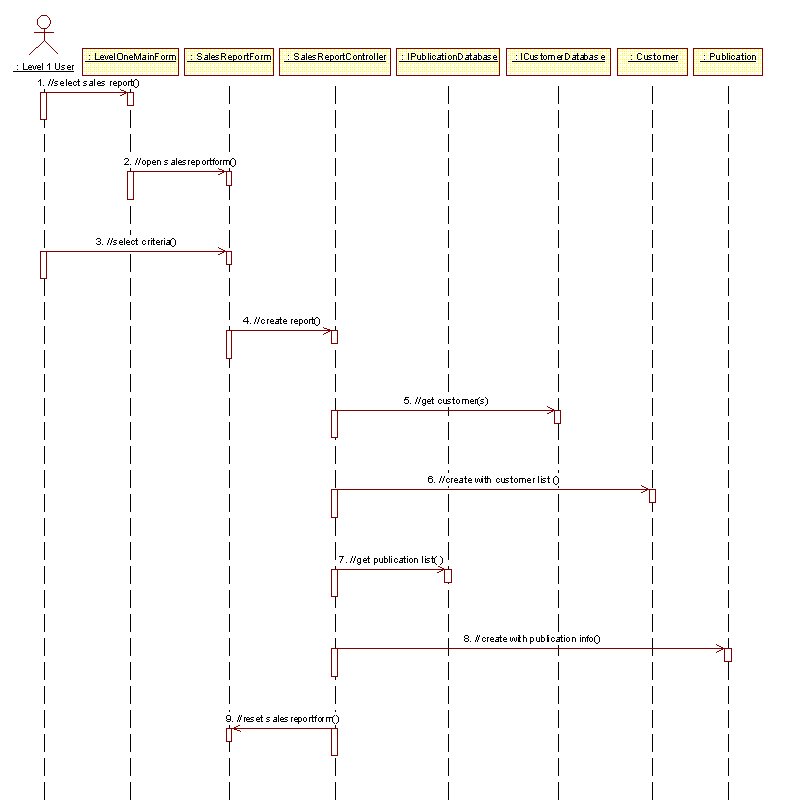

Sales Report (Fail)

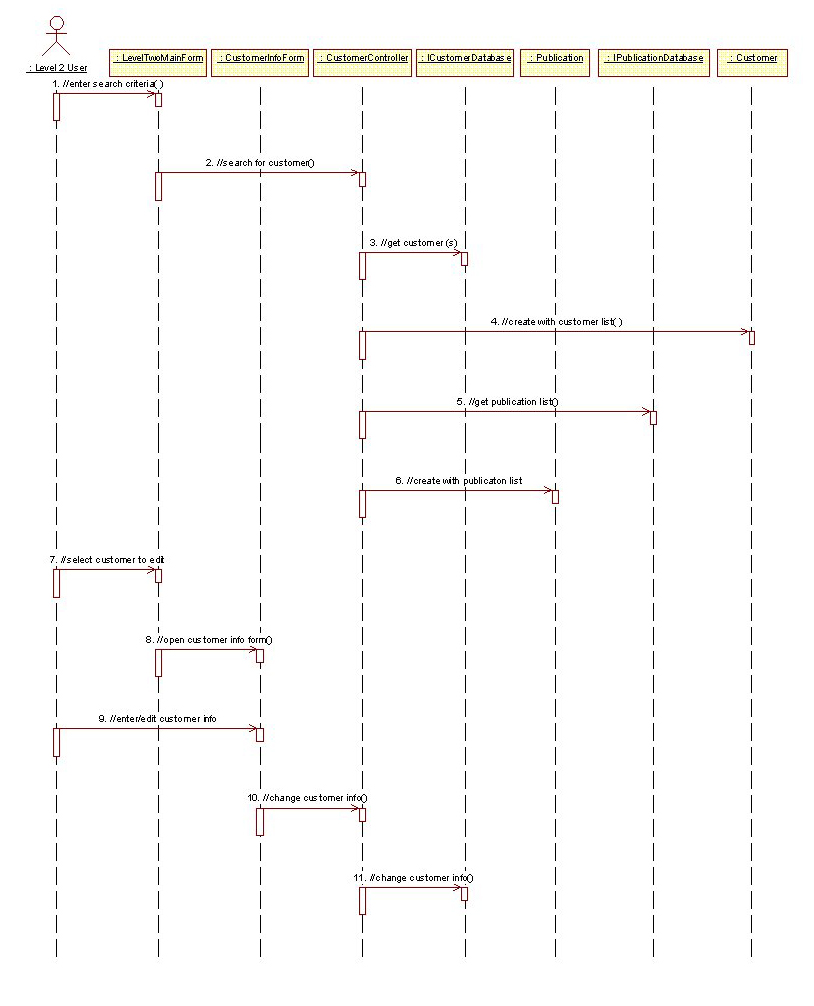

Edit Customer (Pass)

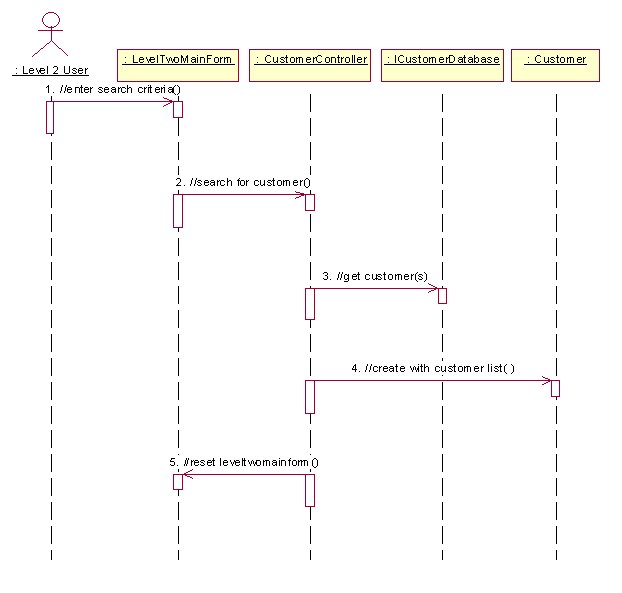

Edit Customer (Fail)

|
